Understanding roof layers explained in plain terms can help you follow an inspection, compare repair options, and understand what a replacement includes. A residential roof is a connected assembly: the visible covering sheds most rain, while the layers and details beneath it help manage water, support the system, and connect it to the house. The exact materials vary by roof design and covering, so a roofer should assess the actual assembly before recommending work.

Request a free roof inspection

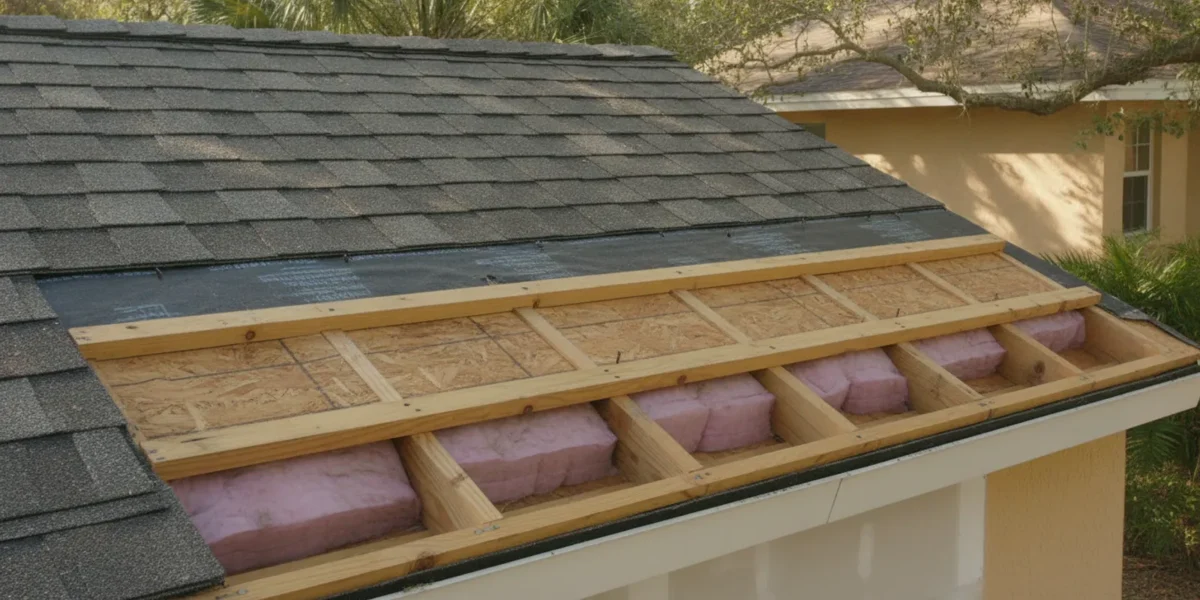

What are the main layers of a residential roof?

On a typical sloped home with asphalt shingles, it is useful to picture the roof from the attic outward. Starting at the house, the assembly may include the roof framing, roof deck, underlayment, flashing and other water-management details, and the shingles. Not every component is a continuous sheet across the entire roof. Flashing, for example, is placed at joints and openings where water needs a carefully managed path.

A metal roof or another roof design uses a different covering and may have different supporting details. A flat or low-slope roof also has its own assembly. This overview is a guide to common parts, not a specification for every home or a substitute for checking the roof in person.

Roof component	Where it is	What it does	What a homeowner can look for
Framing	Below the roof deck	Supports the roof assembly and transfers loads to the structure	From a safe attic vantage point, look for visible sagging, moisture, or damaged wood; do not climb onto framing
Roof deck	Above the framing	Provides the base to which roofing materials are attached	Ask whether any soft, damaged, or unsuitable areas need attention when the covering is removed
Underlayment	Over the deck, below the covering	Adds a layer beneath the roof covering as part of the water-management system	It is usually concealed; ask what material and installation are included in a replacement
Flashing and edge details	At roof joints, penetrations, and edges	Helps manage water at transitions and openings	Look for displaced or visibly damaged details from the ground; leave close inspection to a professional
Roof covering	Outermost roof surface	Sheds weather and protects the layers beneath it	Look for missing, lifted, or visibly damaged pieces from a safe location
Ventilation and drainage details	At roof openings and edges	Support airflow or move water away from the roof edge, depending on the component	Check for blocked visible openings or overflowing gutters, without assuming one symptom identifies the cause

What supports the roof covering?

Roof framing

Framing is the structural support below the roof deck. Depending on the home, it may be made up of rafters or prefabricated trusses. It is not a roofing surface, but it matters because the rest of the assembly depends on a sound support structure. A homeowner may see part of the framing from an attic, but should not walk on ceiling joists or trusses unless the space is specifically designed for that use. If you notice visible movement, damage, or persistent dampness, describe what you see to a qualified roofing professional.

Framing is generally not something to diagnose from a quick glance at the roof outside. A roof inspection considers accessible areas and visible conditions, while any structural concern may call for an appropriate specialist. Avoid treating a stain or a small crack as proof of a particular structural problem without an evaluation.

Roof deck or sheathing

The roof deck, often called sheathing, is the surface attached over the framing. Roofing materials are installed over this base, with the exact fastening and assembly depending on the roofing system. In a replacement, the deck may be concealed until old materials are removed. That is why an estimate should explain what happens if the crew finds an area that is damaged or unsuitable beneath the existing roof, including how the condition will be communicated and handled.

From inside an accessible attic, a homeowner may be able to see the underside of the deck. Dark marks, visible dampness, or daylight where it should not be are reasons to ask for a professional assessment. These observations do not establish the cause on their own. Moisture can enter through different parts of a roof assembly or come from a non-roof source, so tracing it matters before work is chosen.

How do underlayment and flashing manage water?

Underlayment

Underlayment is installed over the roof deck and beneath the visible roof covering. It is part of the roof’s layered water-management approach, not a replacement for a properly installed covering or carefully finished details. The type and placement can depend on the roof design and selected system. Because underlayment is hidden after installation, ask the contractor to identify what is included and how it fits the planned roof assembly.

In North Florida, roofs face heat, humidity, and periods of heavy rain and storms. Those conditions make careful installation and sound details important, but no single layer makes a roof immune to weather. For general roofing-system information, homeowners can also consult the National Roofing Contractors Association. For a home-specific explanation, ask a roofer to show which layers are present and what condition they are in.

Flashing and transitions

Flashing is used at transitions and penetrations, such as where a roof meets a wall or where a vent passes through the roof. The precise design depends on the location and roofing material. These areas need particular attention because water does not move across a roof as if the surface were one uninterrupted plane. Valleys, edges, walls, and penetrations all create transitions that must be integrated with the surrounding materials.

It can be hard to judge flashing from the yard. A visible piece that appears bent or displaced is worth mentioning, but the hidden portions and water path may require a closer inspection. Do not pull up roofing, apply caulk, or climb a wet or steep roof to investigate. A quick patch that covers the visible point without identifying how water is getting in may not address the underlying issue.

When comparing repair proposals, ask which location is being addressed, what the proposed work includes, and whether the roofer found related conditions. North Wood’s Roofing offers roof repair and inspections; an on-site evaluation can help distinguish a localized repair from a wider concern.

What does the outer roof covering do?

The roof covering is the part most people see. It is designed to shed weather and protect the underlying assembly. On a shingle roof, individual shingles overlap so water can run down the slope. On a metal roof, the panels and their seams form a different outer system. Each covering has its own installation details and maintenance considerations, so the rest of the assembly should be considered alongside the material itself.

Homeowners comparing these options can review North Wood’s Roofing information about shingle roofs and metal roofs. The right choice depends on the home, existing roof, project goals, and the details of the proposed system. A material name by itself does not explain how the entire roof will be assembled or whether existing layers need to be removed.

From the ground, you may be able to notice missing or visibly lifted pieces, uneven areas, or debris. These signs can justify an inspection, but they do not always show the condition of concealed layers. Do not walk the roof to get a closer look. Roof surfaces can be slippery, and a homeowner may cause damage or fall while trying to inspect them.

Are ventilation, gutters, and skylights roof layers?

Not exactly. Ventilation openings, gutters, and skylights are related to how a roof works, but they are not all continuous layers stacked across the roof deck.

• Ventilation: Roof and attic ventilation components are openings or pathways in a designed system. Their placement and function depend on the house. A homeowner should not assume that adding an opening is always the right fix for a moisture or comfort concern.
• Gutters: Gutters collect and direct water at the roof edge. They are part of the home’s drainage setup, not a waterproof layer beneath the roof covering. Keeping them clear may help water move through the intended route, but gutters do not universally prevent drainage or foundation problems. See the company’s gutter services for information about gutter work.
• Skylights: A skylight interrupts the roof surface and needs the appropriate integration and flashing around it. If you see moisture near one, the source should be evaluated rather than assumed to be the glass alone. Learn about skylight installation and repair.

These parts connect to the roof assembly, so a problem near one may involve nearby materials or a water path that is not obvious from inside the home. A stain on a ceiling, for example, tells you where water became visible, not necessarily where it entered the roof. Share when you first noticed it, whether it changes after rain, and any related observations with the inspector.

How do the layers work together in North Florida?

Think of the roof as a system rather than a stack of independent products. The framing supports the deck. The deck provides the base. Underlayment and the outer covering work together as part of the weather-shedding assembly. Flashing addresses transitions, while edges, openings, ventilation, and drainage components have separate roles. A weakness or installation issue at one point can affect how the broader assembly manages water.

Heat and humidity can affect roofing materials over time, while strong storms can expose weaknesses or cause new damage. That does not mean every roof needs replacement after a storm, or that every leak indicates a failed roof system. Inspection findings, the condition of the covering and accessible layers, and the scope of any affected area help guide the next step. A repair may be appropriate in some situations; replacement may be considered when the overall condition and repair needs point that way.

North Wood’s Roofing is a veteran-owned residential roofing contractor serving Gainesville, Live Oak, Lake City, and North Florida. The company describes its approach as owner-led, with free inspections that include clear photos and no-pressure options. You can learn more about the company and its approach, or see its roofing services.

What should you ask when a roofer explains the roof layers?

Whether you are considering a repair or replacement, a few specific questions can make the discussion easier to follow:

1. What did you observe? Ask the roofer to show photos and identify the visible condition, its location, and whether it is confirmed or still needs investigation.
2. Which parts of the assembly are included? Ask whether the proposal addresses the covering, underlayment, flashing, edges, penetrations, or another component. Do not rely on a broad phrase like “fix the roof” without a clear scope.
3. What is hidden until work begins? Ask how concealed deck or other conditions will be documented and discussed before additional work is done.
4. What are the options? Ask whether a targeted repair is reasonable, what it would address, and what concerns would remain. If replacement is recommended, ask why the full assembly or covering should be addressed instead.
5. What materials and installation details are proposed? Ask for the names of the materials and a plain explanation of how the parts connect, especially around edges and penetrations.
6. What is covered by the written warranty? Review the actual terms and ask which materials or workmanship are covered, for how long, and what exclusions apply. Warranty terms are not all interchangeable; North Wood’s Roofing provides details on its warranty information page.

A clear answer should connect the observed condition to the proposed work without asking you to guess what is included. If you are comparing proposals, compare scope and materials as well as the final line items. A lower or higher total alone does not tell you whether two proposals cover the same work.

Frequently Asked Questions

Does every residential roof have the same layers?

No. The roof covering, slope, openings, construction, and chosen system affect the assembly. A common sloped shingle roof is a useful example, but a metal roof or low-slope roof may use different materials and details. Ask a roofer to explain the actual system on your home.

Can I tell whether underlayment is damaged from the ground?

Usually not. Underlayment is concealed below the outer covering. Visible signs such as missing shingles or an interior stain can prompt an inspection, but they do not establish the condition of the underlayment. A professional assessment is needed to determine what is visible and what may be hidden.

Does a ceiling stain show exactly where the roof is leaking?

Not necessarily. Water can travel before it appears indoors, and a stain can also have a source unrelated to the roof. Note the location and timing, protect belongings if needed, and request an evaluation rather than assuming the entry point based on the stain alone.

Are gutters one of the roof layers?

No. Gutters are attached near the roof edge and help collect and direct runoff. They are part of the drainage setup, separate from layers such as the deck, underlayment, and roof covering.

When should I request an inspection?

Request an evaluation if you notice a leak, visible damage, a change after a storm, or another condition you cannot safely assess. An inspection can help clarify what is visible, what needs attention, and whether repair or further evaluation is appropriate.

Schedule a free roof estimate

Get a clear explanation of your roof

Each roof is different, and the most useful explanation is one tied to the home’s actual materials and condition. If you are unsure what layers your roof has or what a proposed repair includes, ask for a photo-supported inspection and a straightforward description of the options.

A roof can look nearly flat from the yard while still having a measurable slope that affects how rain moves across its surface. For North Florida homeowners, understanding that slope can make conversations about repairs, replacement, drainage, and roofing materials much easier.

Request an honest roof inspection from North Wood’s Roofing.

The ratio is simple once you know what each number means. Next, we will define roof pitch in plain language and show how the measurement relates to the roof above your home.

What Is Roof Pitch? A Simple Definition for Homeowners

Roof pitch is the measured slope of a roof. It describes how much the roof rises compared with the horizontal distance across it. Roofing professionals usually express that measurement as a ratio, which makes it easier to describe a roof consistently. The term slope is often used for the same basic idea. For a source-backed definition, see this overview of how roof pitch is measured.

How the rise-over-12 measurement works

Most residential roof-pitch descriptions use 12 inches of horizontal distance as the reference, or run. The first number tells you how many inches the roof rises during that 12-inch run. For example, a 4-in-12 roof rises 4 inches for every 12 inches of horizontal distance. It does not mean the entire roof rises only 4 inches. The ratio is a consistent way to describe the angle across a roof plane.

A lower first number indicates a gentler slope, while a higher first number indicates a steeper slope. Those terms are useful for communication, but the ratio is more precise than saying a roof looks gently or sharply sloped.

Why a visual guess can be misleading

Two roof sections can look similar from the ground while having different measured slopes. Roof shape, framing, nearby trees, camera angle, and the distance from the house can all affect what you see. A roof may also have more than one plane, with different sections meeting at different angles. That is why pitch should be measured rather than estimated from a driveway or street view.

An accurate measurement can help a homeowner and roofing professional discuss the existing roof clearly during repair, maintenance, or replacement planning. If you are unsure about the pitch or the condition of a roof section, a professional evaluation can provide a more dependable starting point than visual inspection alone.

How Do You Read a Roof Pitch Ratio?

Roof pitch is the slope of a roof, written as a ratio that compares vertical rise with 12 inches of horizontal run. This is a useful shorthand for discussing roof design, drainage, and material requirements. But it is not a measurement most homeowners should try to confirm by climbing onto the roof.

Read the first number as rise and 12 as run

1. Start with the first number. In a ratio such as 3:12, the 3 represents the number of inches the roof rises vertically.
2. Keep the second number in mind. The 12 represents 12 inches of horizontal distance, or one foot of run. The ratio describes the relationship between these two measurements, not the length of the roof surface.
3. Apply the same pattern to 4:12. A 4:12 roof rises 4 inches for every 12 inches of horizontal run. This is the standard example used to explain how pitch ratios work. A longer roof section repeats that relationship, but the ratio itself does not change.
4. Read 6:12 the same way. A 6:12 roof rises 6 inches over each 12 inches of horizontal run. Because the rise is greater for the same run, the roof surface is steeper than a 3:12 or 4:12 roof.
5. Do not confuse pitch with a visual guess. Roof planes, dormers, wide-angle photos, shadows, and camera position can make a roof look flatter or steeper than it is. Exact pitch can affect roofing-system choices, so an image alone is not a dependable measurement.

For a homeowner, these ratios are best used to understand an inspection report or a roofing discussion. If the pitch, condition, or drainage is uncertain, a qualified inspection can provide a safer, more reliable evaluation than attempting to measure it from the roof.

For additional background, the roof-pitch definition and 4:12 example are documented by this roof pitch reference.

Why Roof Pitch Matters for Florida Drainage

How slope helps move rainwater

Roof pitch influences how quickly rainwater sheds from a roof surface. A steeper slope can help water move toward the edges. While a lower slope may give water more opportunity to linger when the roof surface, seams, flashing, or drainage components are not working together. That does not make one pitch universally better for every Florida home. The roof’s design, covering, installation details, and condition all matter.

FEMA’s sloped-roof guidance uses 3:12 or greater as a reference for sloped roofs and identifies roof drainage as one part of the overall roofing system. In North Florida, that system has to manage frequent rain as well as heat, humidity, and storm conditions. Roofing products and installation details should also follow the applicable manufacturer’s instructions, including guidance for high-wind locations. Details such as properly placed fasteners, appropriate roof-edge protection, and sound flashing can affect how well the assembly manages water.

Pitch is only one part of the drainage plan

Runoff volume can be larger than many homeowners expect. WSU Extension estimates that 100 square feet of roof can produce about 62 gallons of runoff from one inch of rain. The actual amount collected depends on the roof area and rainfall, but the example shows why roof edges, gutters, and downspouts deserve attention alongside pitch.

Gutters and downspouts help direct rainwater down and away from the home, but they need to be adequately sized, clear, and connected to a sensible discharge path. Learn more about gutter installation and drainage when evaluating the full system. If you are unsure how your roof pitch, edges, and drainage work together, a photo-documented inspection can clarify the condition without assuming that pitch alone explains the problem.

Sources: FEMA sloped-roof fact sheet and WSU Extension roof runoff guidance.

How Pitch Can Affect Roofing Material Choices

Roof pitch is one part of planning a roofing system. It can affect how quickly water moves across the roof and which material systems can be considered, especially on lower-slope sections. It does not select the material by itself. The existing deck, roof layout, flashing details, underlayment, ventilation, exposure, and the product manufacturer’s instructions all matter.

Use pitch as a planning category, not a final answer

The ranges below are useful conversation starters for a homeowner. They are not code categories, engineering determinations, or a promise that every product works within a given range. A roof can also contain more than one slope, so different sections may need separate review.

Roof pitch categories for early material planning

Planning category	Example pitch range	What it may mean for planning
Low-slope	0:12 to 3:12	Material compatibility, water-shedding details, and installation requirements deserve close review. Some systems have minimum-slope limits.
Moderate example	4:12 to 6:12	Many common residential options may be considered, but the complete assembly and the selected product instructions still control the decision.
Steeper example	7:12 to 12:12 or higher	Access, fastening, flashing, underlayment, and installation planning become especially important. The material choice still depends on the roof design.

For asphalt shingles, the U.S. Department of Energy’s Building America Solution Center says installation should follow the manufacturer’s instructions for high-wind locations. Its guidance also addresses details such as correct fastening, drip edge, and flashing. Those details show why a pitch discussion should include the whole roofing assembly rather than a material name alone: manufacturer-based shingle installation guidance.

If you are comparing metal and shingle systems for a Gainesville, Live Oak, or Lake City home, review the differences in Florida roofing material options. When pitch or the existing roof condition is uncertain, a professional evaluation can help connect the measurement to a practical replacement or repair plan.

Can a Homeowner Measure Roof Pitch Safely?

Homeowners can learn useful basics about roof pitch without climbing onto the roof. From the ground, you can identify whether a roof plane appears relatively low, moderate, or steep and note whether different sections have noticeably different slopes. These observations can help you describe the home when requesting an evaluation, but they are not a substitute for an exact measurement.

What you can observe from the ground

Look from a level location across the street, driveway, or yard rather than standing beneath an edge or trying to reach the roof. Notice the general angle of each visible roof section, the direction water would travel toward the eaves, and whether additions or dormers appear to have a different slope. Binoculars or a zoomed photo may help you see roof planes from a safe position, but avoid treating a photo as a precise measuring tool.

You can also look for visible signs that make a professional review worthwhile, such as stained areas, damaged shingles, or water-management concerns around roof edges. Do not walk the roof or use a ladder to take measurements. Wet surfaces, loose materials, roof edges, and changes in elevation can create risks that are difficult to judge from the ground.

Why an exact measurement matters

Pitch is expressed as the amount a roof rises over 12 inches of horizontal run. A small difference in the ratio can affect planning for materials, underlayment, flashing, and drainage details, and the correct requirements vary by roofing system and manufacturer. An estimate based only on appearance could therefore lead to the wrong assumption about what the roof needs.

A qualified roofing professional can assess the pitch along with the roof’s condition, construction details, and water-management components. If you are planning repair or replacement in Gainesville, Live Oak, Lake City, or nearby North Florida communities. A photo-documented, no-pressure evaluation can give you a clearer basis for decisions without asking you to take an unnecessary risk.

Why Florida Homeowners Should Have Roof Pitch Explained

What pitch does not tell you

Roof pitch is useful for planning, but it is only one characteristic of a roofing system. A steeper or lower slope does not, by itself, tell you how well the roof will handle wind. How long it will last, or whether a particular material is appropriate. Those questions depend on the complete assembly and the condition of the home.

For example, installation details matter alongside the slope. The Building America Solution Center advises following the shingle manufacturer’s instructions for high-wind locations. Placing fasteners in the designated nailing zone, and avoiding nails that are over-driven or under-driven. It also identifies flashing at roof penetrations and roof-wall intersections as part of water management. These details are easy to miss when a homeowner looks only at the roof’s angle. Review the installation guidance for the limits of what pitch alone can explain.

Materials, underlayment, flashing, ventilation, roof edges, and drainage all deserve their own review. Pitch may influence which systems can be considered, but manufacturer requirements and the actual roof structure still matter. In North Florida, heat, heavy rain, humidity, and storm exposure make a complete evaluation more useful than a pitch number in isolation.

Questions to ask about your roof?

If you are planning work, ask the roofing professional to explain the whole assembly in plain language:

• What is the measured pitch, and how does it affect the material options being proposed?
• Which underlayment, flashing, and fastening details are part of the planned installation?
• How will roof edges, penetrations, valleys, gutters, and downspouts be addressed?
• Which product instructions and location-specific wind considerations apply?
• What visible conditions should be documented before repair or replacement?

These questions can make a roof replacement planning guide more practical because they connect the pitch measurement to decisions that affect the entire project. If a storm has caused visible damage, ask for a focused evaluation through Florida storm damage roof repair resources rather than assuming the pitch explains the problem.

When Should You Request a Professional Roof Inspection?

You do not need to know your exact roof pitch to recognize when an evaluation could help. Request an inspection when the roof’s condition, drainage, or future plans are unclear, especially before a small concern becomes a larger repair decision.

• You notice signs of a leak or visible damage. Stains on ceilings, damp attic areas, missing or lifted roofing materials, damaged flashing, and exposed components deserve attention. Review these signs of a roof leak and arrange an evaluation rather than assuming the problem is minor.
• Water does not appear to drain as expected. If you see standing water, overflowing roof edges, or uncertain downspout discharge during rain, an inspection can look at the roof slope, edges, flashing, and drainage path together. Pitch influences how water sheds, but it is only one part of the system.
• You are considering a material change or replacement. Roof pitch can affect which roofing systems and installation details may be appropriate. Before comparing options, ask a professional to review the existing assembly, condition, and measurements. A residential roofing services provider can help connect that review to repair, maintenance, or replacement planning.
• Your home has recently experienced severe weather. Storm damage is not always obvious from the ground. An inspection can document visible conditions and help separate urgent repairs from issues that can be monitored.

North Wood’s Roofing serves homeowners in Gainesville, Live Oak, Lake City, and nearby North Florida communities. Its inspections are photo-documented and designed to give homeowners a no-pressure view of roof conditions and available options.

If you are unsure whether your roof needs attention, request an honest professional evaluation before choosing a repair or replacement path.

Frequently Asked Questions

How do I understand the pitch of a roof?

Roof pitch describes how much a roof rises for every 12 inches of horizontal distance. A 4-in-12 roof rises 4 inches across that 12-inch run. The ratio helps homeowners compare slopes, but it is not the same as a roof angle or a percentage. An exact pitch should be measured rather than guessed from a ground-level view.

What does a 3/12 roof pitch mean?

A 3-in-12 pitch rises 3 inches for every 12 inches of horizontal run. It is generally considered a lower-slope roof category, so drainage details and the selected roofing assembly deserve careful review. The suitability of shingles, tile, or another material depends on the product instructions and the complete installation, not the ratio alone.

Does a steeper roof drain better in Florida?

A steeper slope can help water shed more quickly, but pitch is only one part of the drainage system. Roof edges, flashing, valleys, gutters, downspouts, and installation quality also affect how rainwater is managed. In North Florida, an inspection can help identify whether a drainage concern is related to pitch, roof condition, or another component.

Can you put shingles on a low-slope roof?

That depends on the exact slope, the shingle product, and the manufacturer’s installation requirements. Some lower-slope applications may need different underlayment or additional water-management measures. A professional should confirm the measurement and review the proposed roofing assembly before replacement work begins.

Get Started With a Clear Roof Evaluation

Roof pitch is one part of understanding how your roofing system handles water and which materials may fit. When the pitch, condition, or drainage is uncertain, an evaluation can help you plan the next step with better information. To request an honest, no-pressure roof inspection or evaluation, contact North Wood’s Roofing through the website.
